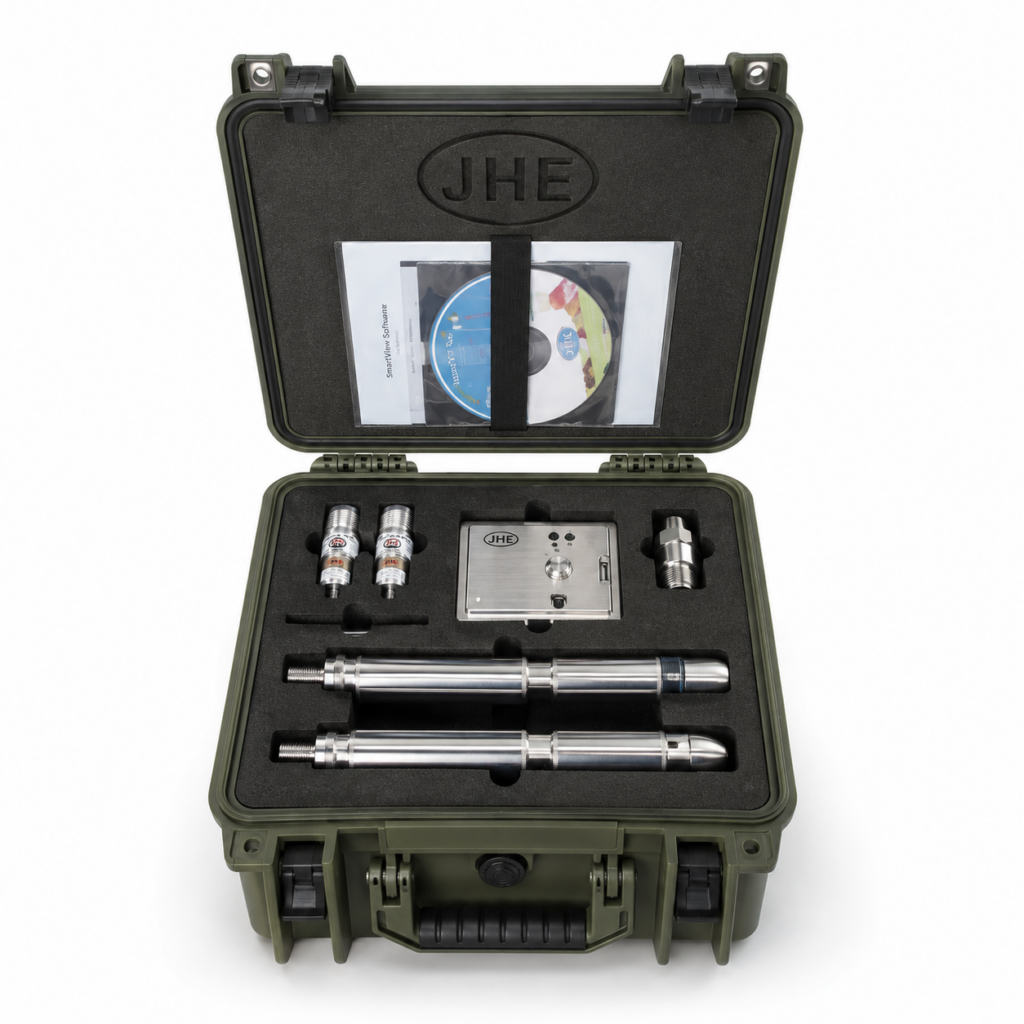

JHE28 Quartz Memory Gauge

The JPE28 Quartz Memory Gauge has an integrated quartz pressure transducer and high temperature electronics making it highly accurate and stable, perfect for critical well testing. It is designed for applications where high quality data is required from a high temperature environment. The JPEView software which accompanies the gauge has a user friendly interface, so operators can feel confident programming the gauges and retrieving data.

Sensor Type: Quartz

Pressure Range–psi: 10K | 16K | 20K | 25K

Accuracy–psi: ± 0.02%

Resolution–psi: <0.01

Drift–psi/year: <0.02% FS

Temperature Rating–°C: 150 (302 °F) | 177 (350 °F)

Accuracy–°C: ± 0.2

Resolution–°C: <0.005

Service: Sour Services

Power Source: Lithium Battery Pack

Communication: USB / RS232

Data Set: Time / Pressure / Temperature

Max OD–inches: 0.75 (19 mm) | 1.27 (32 mm) | 1.375 (35 mm)

Overall Length–inches: 24.8 (629 mm) | 25.2 (640 mm)

Housing Material: Inconel 718 | MP35N

Sampling Rate: 1s – 18hrs/per sample (0.1s – 1.8hrs/per sample optional)

Memory Capacity: 4,000,000 data sets (8 million datasets optional)
